Quick Overview

Different Voltage Parameters:

• DC 12V, current 0.14A, speed 3500RPM

• DC 18V, current 0.15A, speed 4500RPM

• DC 24V, current 0.16A, speed 7000RPM

• DC 30V, current 0.17A, speed 8100RPM

• DC 36V, current 0.20A, speed 9000RPM

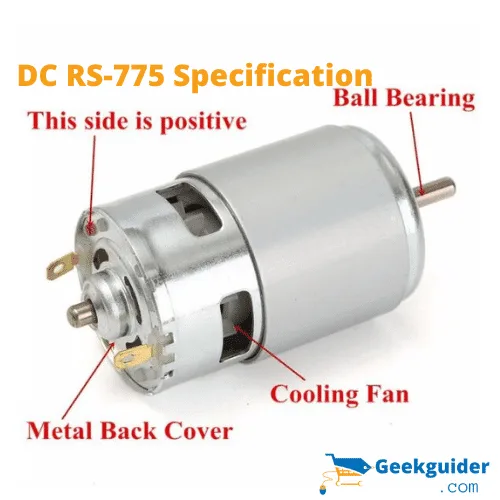

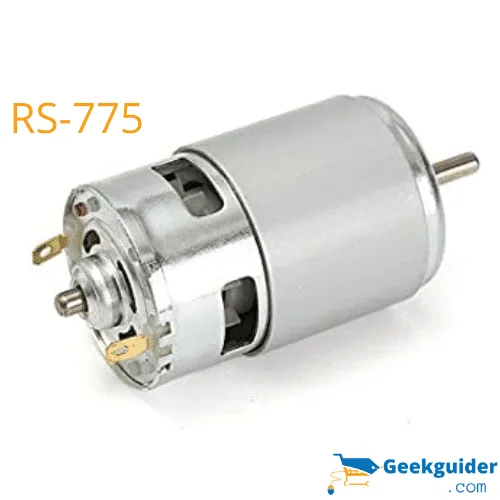

• 775 motor dc 12v-36v 3500-9000rpm motor large torque high-power motor specification: model 775 shaft diameter 5mm shaft length 17mm body length 66. 7mm front steps diameter 17. 4 mm former high level 4. 7 mm

• Large torque, low noise. Used in electric tool motors, power is very large, you can make a small spindle motor.

• Shaft Diameter: 5mm / 0.2in

• Shaft Length: 17mm / 0.67in

• Body Length: 66.7mm / 2.63in

• Front Steps Diameter: 17.4mm / 0.69in

• Former High Level: 4.7mm / 0.19in

• Body Diameter: 42mm / 1.65in

• Motor Overall Length: 98mm / 3.86in

• Diagonal Installation Pitch: 28.8mm / 1.13in

• Package Weight: 351g / 12.38ounces

• Package Included: 1x Dc Motor

• Package Size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97in
